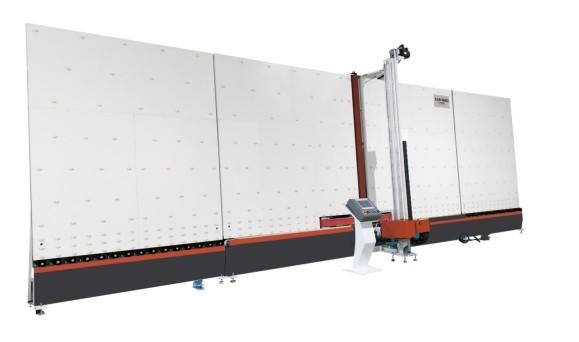

Smart Vertical Edge Deleting Machine

Name: Smart Vertical Edge Deleting Machine
Brand: Lijiang glass
Price: 1 USD

Brand Name : Lijiang glass

Model Number : LJCM2850

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 45 days

Packaging Details : Container

Product Name : Smart Vertical Edge Deleting Machine

Voltage : 380V 50Hz

Total power : 15kw

Max. glass processing size : 2800*5000mm

Min. glass processing size : 400*280mm

Glass thickness : 3-15mm

Diameter of grinding wheel : 200mm

Conveyor height : 500mm

Edge deleting width : 10-50mm

Transmission speed : 29m/min

Edge deleting speed : 2-29m/min

Abrasive wheel width : 12mm

Grinding wheel speed : 0~3000r/min

Total air consumption : 100L/ min

Contact Now

Main feature

• Two-way glass access

• Delete double and triple silver low-e glass

• Automatically measure glass size

• Automatically distinguish low-e surface

• Edge deletion is adjustable

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

• Intelligent control system, can recognize batch processing

Smart Vertical Edge Deleting Machine

Technical data

Max. glass processing size	25004500mm , 28005000mm ,3000*6000mm
Min. glass processing size	400*280mm
Glass thickness	3-15mm
Diameter of grinding wheel	200mm
Conveyor height	500mm
Edge deleting width	10-50mm
Transmission speed	29m/min
Edge deleting speed	2-29m/min
Abrasive wheel width	10/12/15mm
Glass thickness	3 - 15mm
Grinding wheel speed	0~3000r/min
Total air consumption	100L/ min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz 15KW

Electrical parameters

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON

Wholesale Smart Vertical Edge Deleting Machine from china suppliers

Smart Vertical Edge Deleting Machine Images
